YAC G65

USB Wall Charger 65W

  1. Compact size
  2. Universal use
  3. Innovative GaN technology

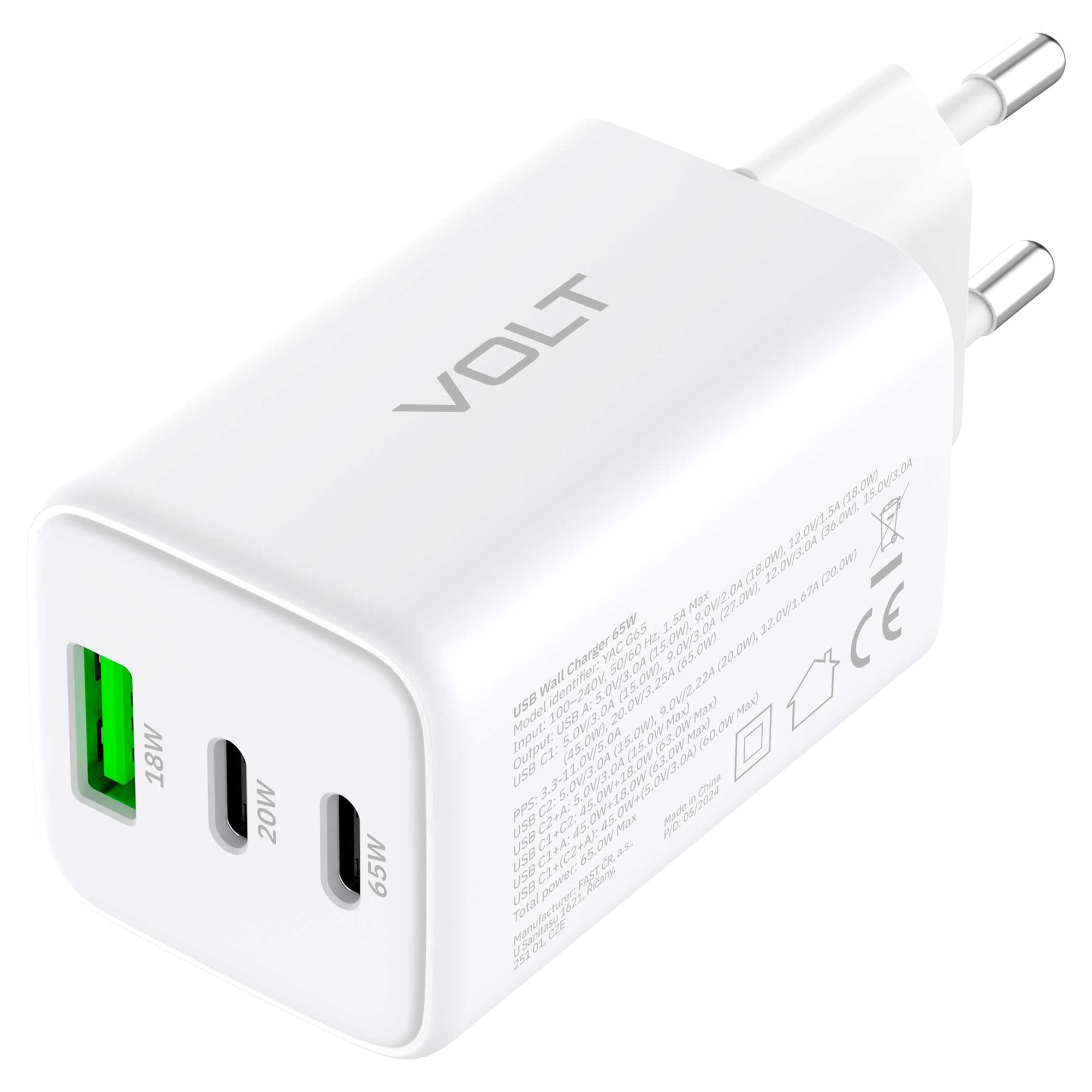

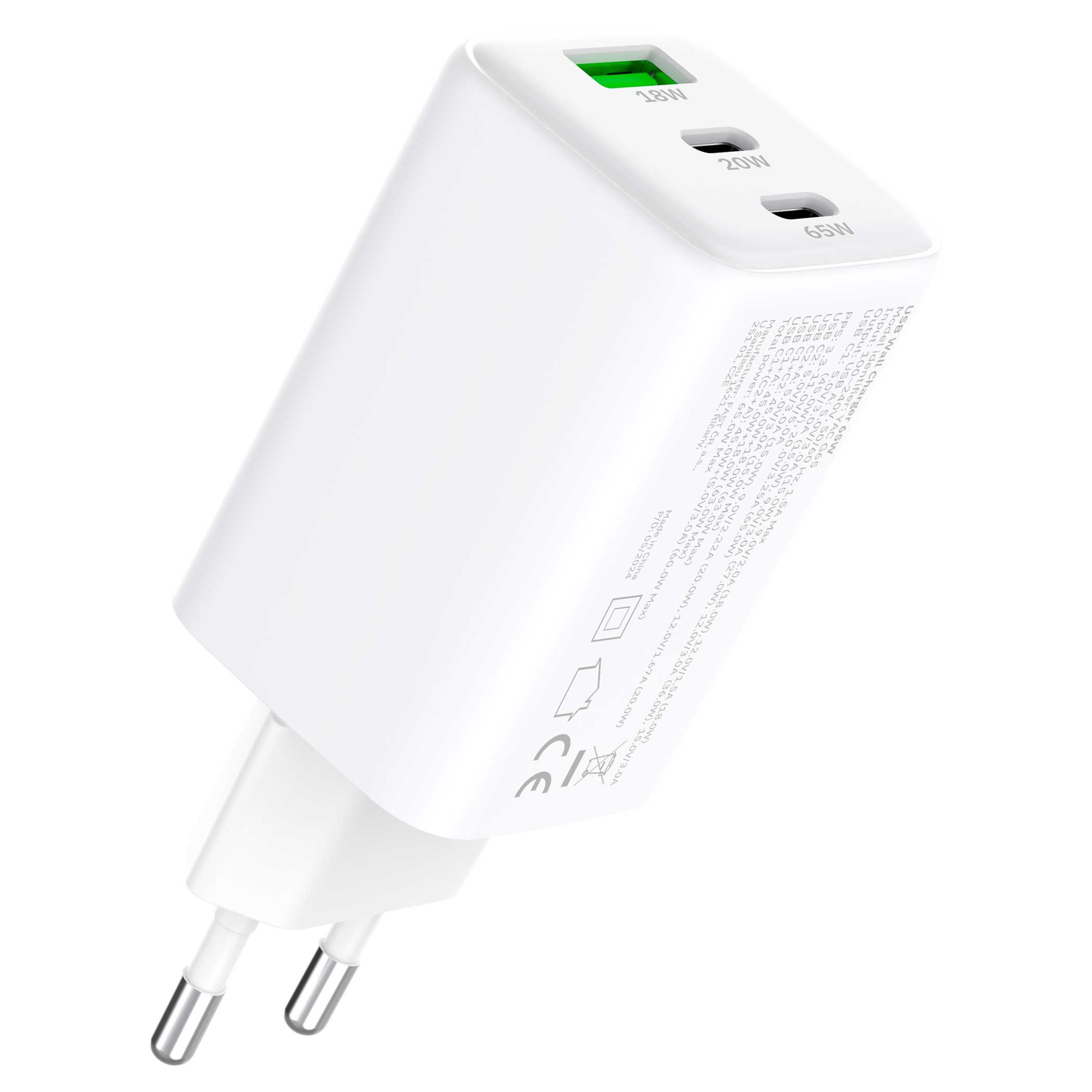

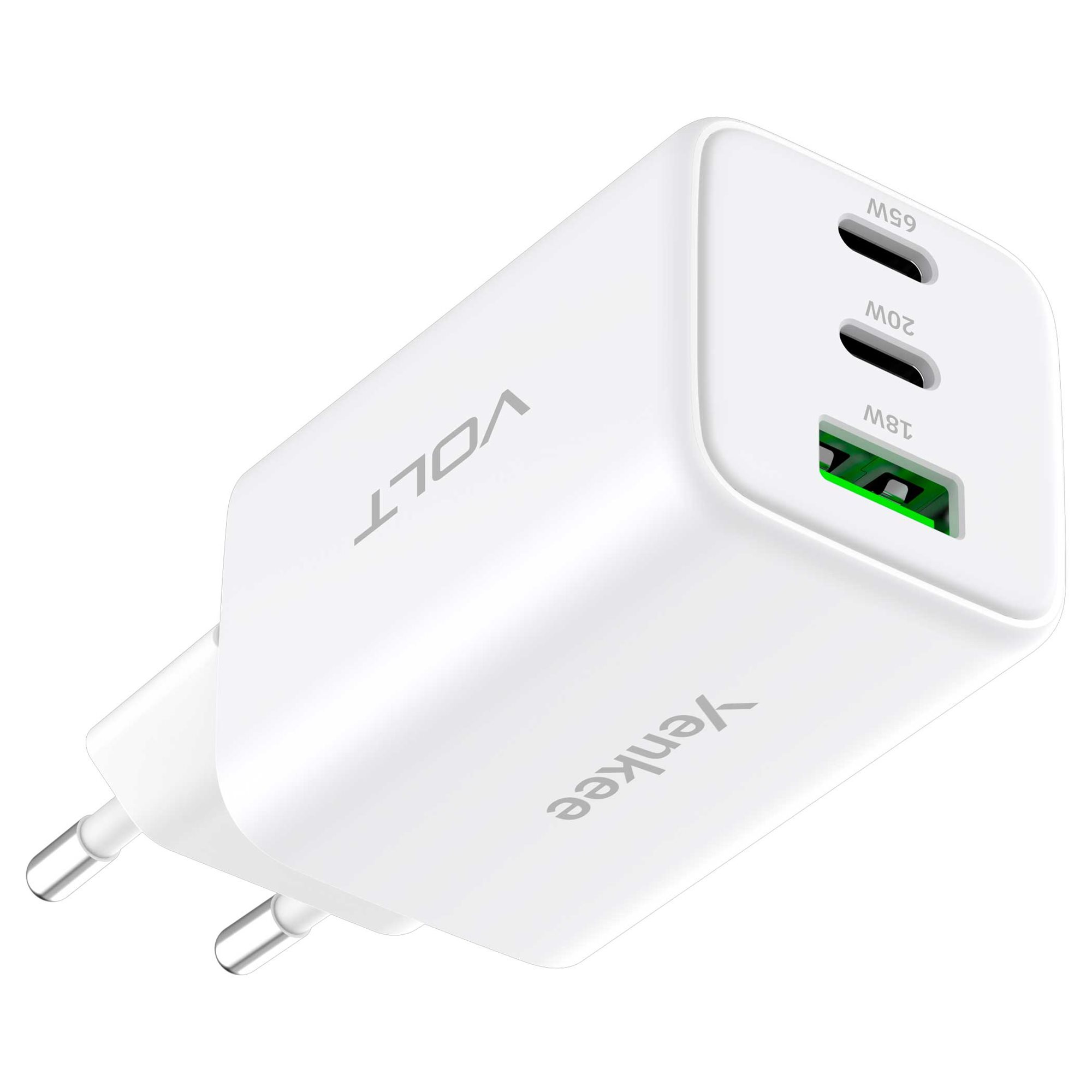

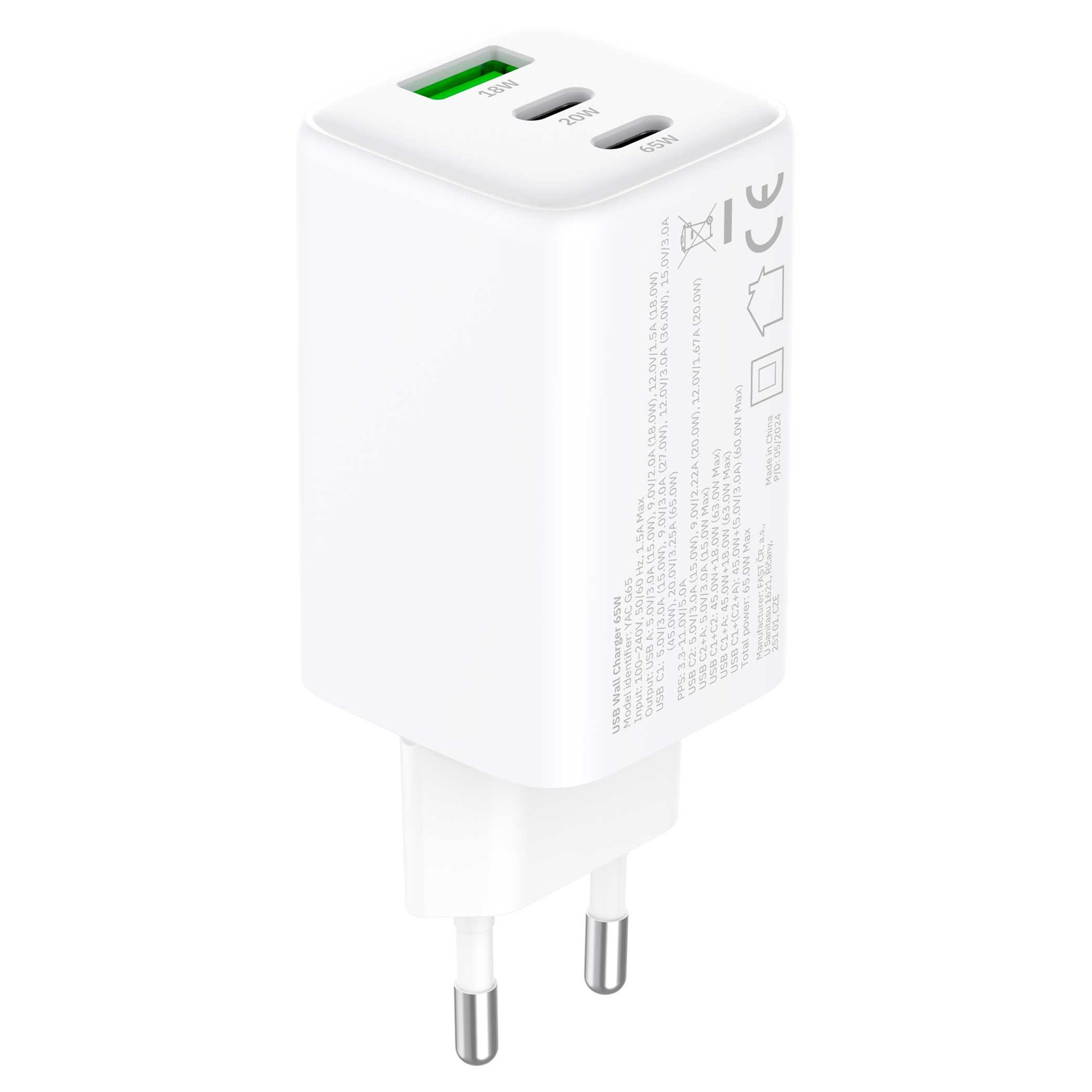

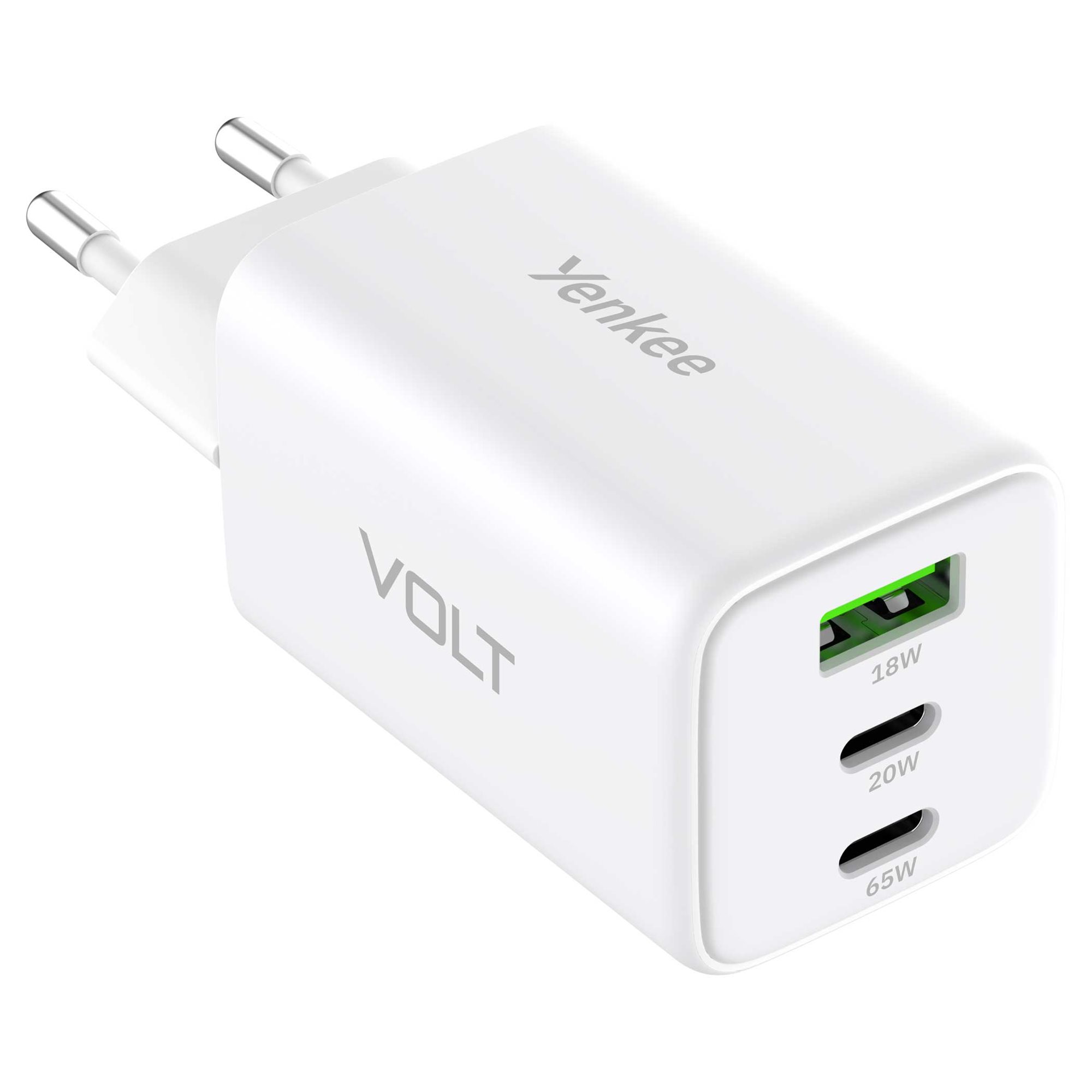

USB Wall Charger 65W

The GaN Charger VOLT YAC G65 is designed to deliver high power, compact size, and versatile usage. It features three USB outputs, allowing you to charge multiple devices at once. The total combined output is up to 65 W, making it suitable for charging a wide range of devices, including laptops, tablets, and smartphones.
You no longer need different chargers for different devices. The VOLT universal charger fits most mobile devices such as phones, tablets and other electronic accessories.


Rely on safe and fast charging thanks to support for:

Apple 2.4A,
USB Power Delivery 3.0
Quick Charge 2.0/3.0/4.0+
HUAWEI FCP/SCP
SANSUNG AFC

The output power is sufficient to charge the latest MacBook Air M2, all iPad series and iPhone. The charger also features Adaptive Fast Charging and Fast Charging Protocol for fast charging of Samsung and Huawei smartphones.

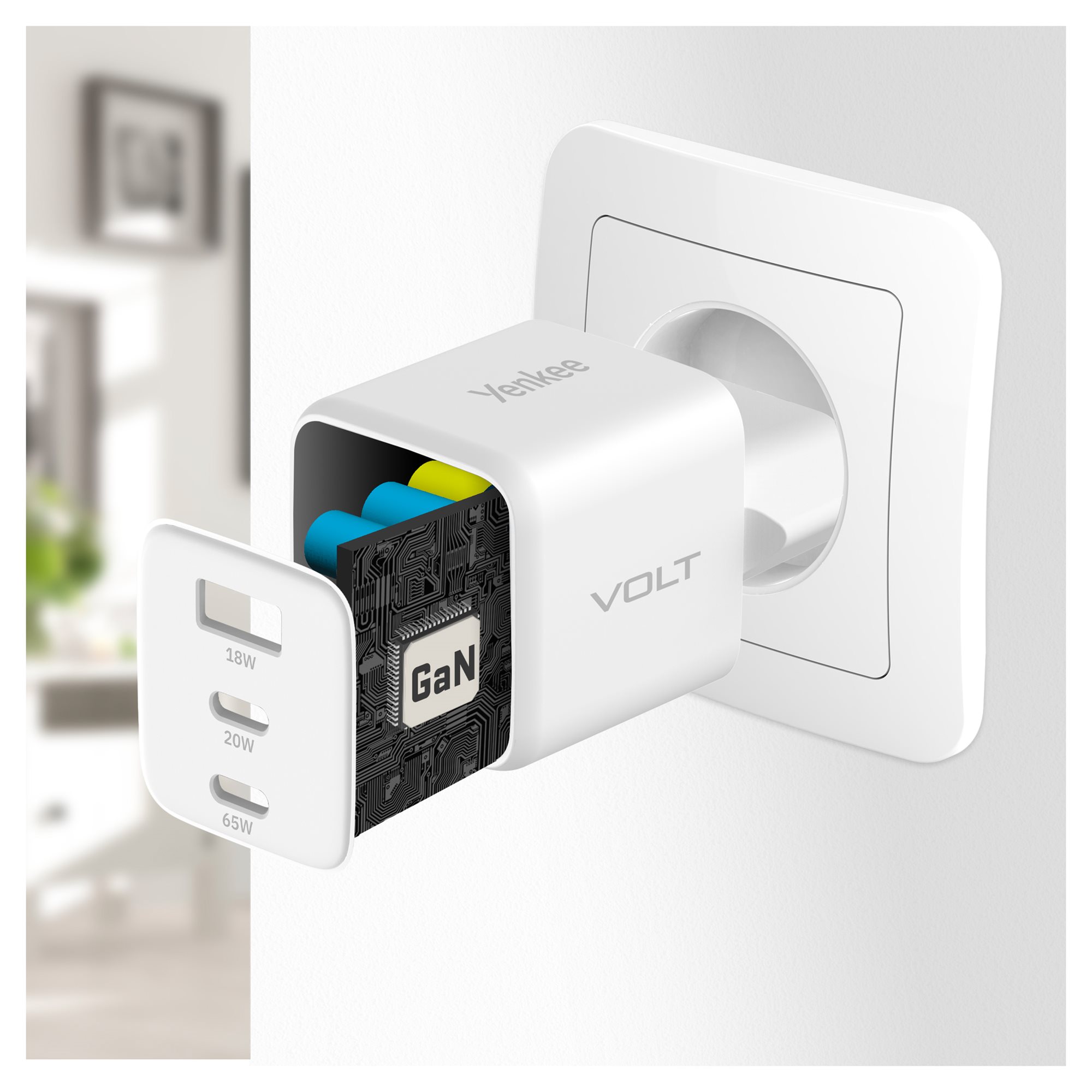

Innovative GaN (Gallium Nitride) technology allows the charger body to be reduced in size by up to 30% and still offer high output power of up to 65W.
Thanks to the lightweight design and compact size, it’s suitable for travelling or for use as a spare charger.
To ensure the maximum safety of yourself as well as your device, the charger has a multiple protection against overvoltage, overload, incineration and short-circuit.
YAC G65

Specifications

Model identifier YAC G65
Input voltage AC 100 - 240 V
Input frequency 50/60 Hz
Output voltage DC max. 20.0 V
Output current max. 3.25 A
Output power max. 65.0 W
Average active efficiency 91.43 %
Efficiency at low load (10%) 83.67 %
No-load power consumption 0.157 W
Combined outputs
USB A 5.0V/3.0A (15.0W), 9.0V/2.0A (18.0W), 12.0V/1.5A (18.0W)
USB C1 5.0V/3.0A (15.0W), 9.0V/3.0A (27.0W), 12.0V/3.0A (36.0W), 15.0V/3.0A (45.0W), 20.0V/3.25A (65.0W)
PPS 3.3-11.0V/5.0A
USB C2 5.0V/3.0A (15.0W), 9.0V/2.22A (20.0W), 12.0V/1.67A (20.0W)
USB C2+A 5.0V/3.0A (15.0W Max)
USB C1+C2 45.0W+18.0W (63.0W Max)
USB C1+A 45.0W+18.0W (63.0W Max)
USB C1+(C2+A) 45.0W+(5.0V/3.0A) (60.0W Max)
Total power 65.0W Max
Dimensions 93.1x35.5x35.5 mm
Weight 114 g
Material Polycarbonate
