YTC 1101

USB C universal notebook docking station

  1. Plug & play
  2. 11in1 solutions
  3. Premium aluminium design

11-in-1 solution

Docking station with 11 different additional ports your laptop is missing. Universal path to wide connectivity.
Další
Zpět
11-in-1 solution

Expansion with up to two additional monitors

There are never enough displays. You get enough space for your work thanks to three different video output ports HDMI, DisplayPort and VGA.
Další
Zpět
Expansion with up to two additional monitors

Third time connected

Three USB-A ports for connecting your favourite keyboard or mouse and external storage. In addition, two of them are USB 3.0 with up to 5Gbps data rates.
Další
Zpět
Third time connected

Speed thanks to USB-C 3.2 gen.1 and a smart chipset

USB-C 3.2 Gen. 1 takes care of the connection to the laptop, which is among the current lead in connectivity. In addition, with the integrated RTL8153B chipset, you are guaranteed trouble-free operation under any circumstances.
Další
Zpět
Speed thanks to USB-C 3.2 gen.1 and a smart chipset

Up to 100W of charging power

The Power delivery 3.0 technology guarantees ultra-fast charging of your notebook. It can deliver up to 100W of charging power via USB-C.
Další
Zpět
Up to 100W of charging power

Always enough power and connectors

I am a 11-in-1 docking station. What does it mean to you? With a single USB-C on your laptop, you can conjure up another 11 connectors for additional peripherals. If your laptop is still hungry for enough electricity, you will be pleased with Power Delivery 3.0 and charging power of up to 100W, which in combination with the top USB-C 3.2 Gen. 2 connectors charge your laptop quickly and without compromise.

One image more

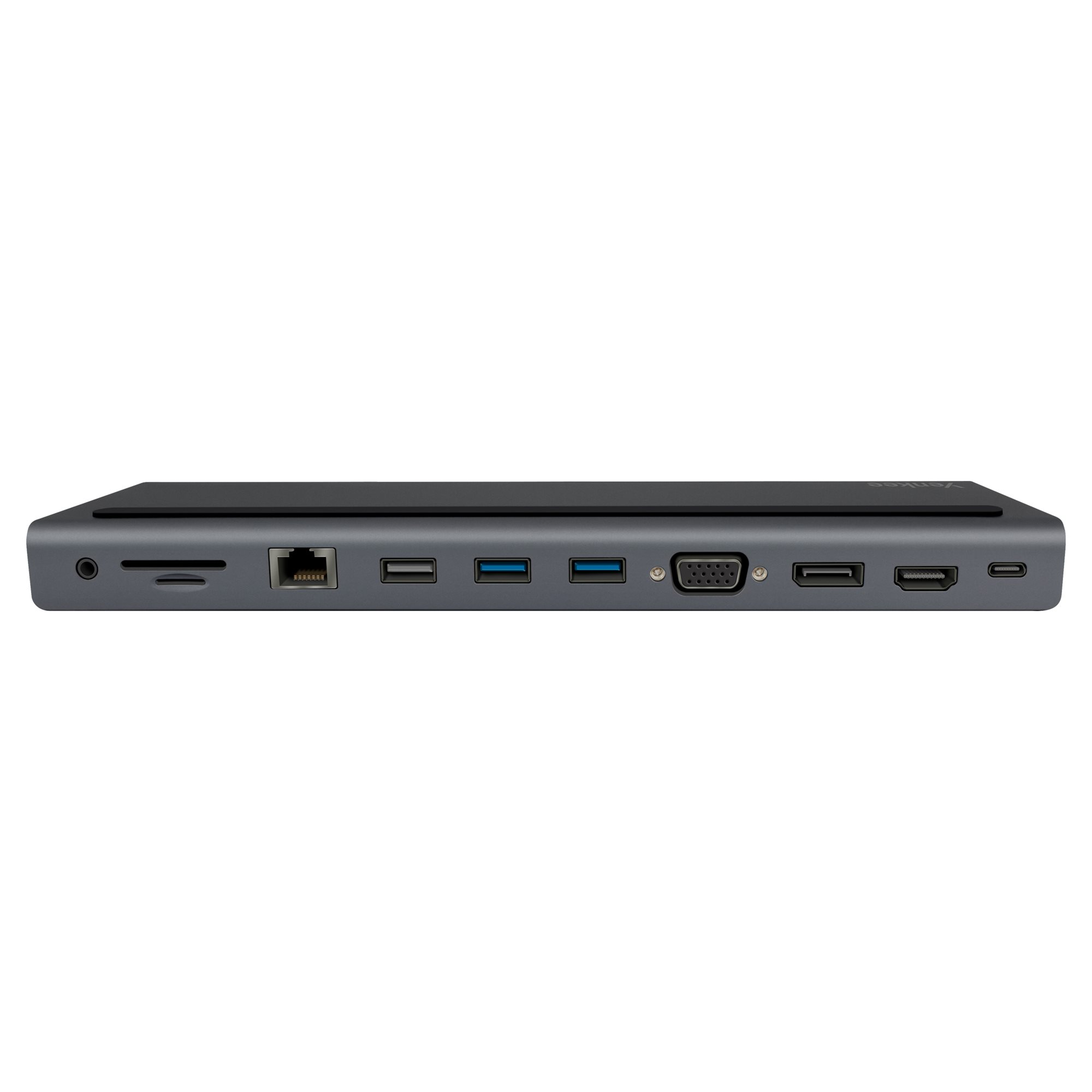

There are three output ports for expanding the desktop with up to two more monitors. With HDMI 4K / 30Hz, DisplayPort 4K / 30Hz and VGA 1080p / 60Hz connectors, you can connect any video device. With VGA you will also find use, for example, for older monitors or a projector. You can also add sound to a great picture transfer. The classic 3.5mm audio jack allows you to use your favourite headphones or speakers.

Speed and versatility

Comfortable accessories are certainly needed for comfortable work. Enjoy your favorite keyboard or mouse thanks to the integrated USB-A 2.0 port. If you often use varioius flash drives or other external storage, you will enjoy the presence of two USB 3.0 with the possibility of data transfer speeds of up to 5Gbps. Adding to my versatility is also the classic RJ-45 Ethernet connector with up to 1000Mbps connection support.

Ergonomics and pleasing design

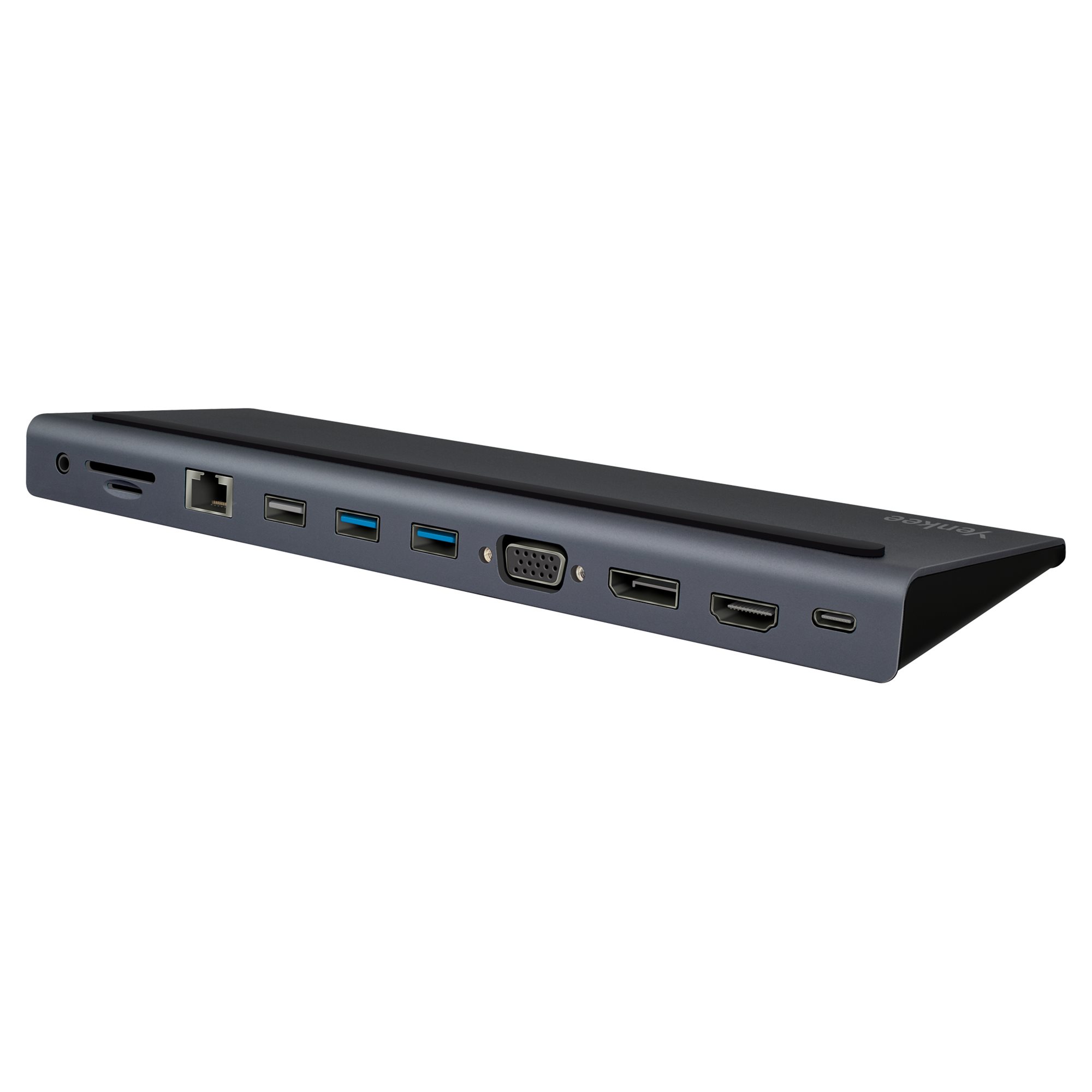

My aluminum body brings with it not only an elegant look, but also an efficient system for dissipating the heat radiated by the laptop. In addition to the passive cooling function, I will also serve as a practical stand, thanks to which you will have a laptop, and thus a keyboard, at a much more pleasant angle. The dock connects via USB-C and is compatible with MacOS, iPadOS and Windows 7/8/10.
YTC 1101

Specifications:

Input USB C 3.2 Gen.1
Output Type C (100W)
  HDMI 4K / 30 Hz
  DisplayPort 4K / 30 Hz
  VGA 1080P / 60 Hz
  1× USB 2.0
  2× USB 3.0
  Port RJ-45 Ethernet (1 000 Mb/s)
  SD/TF slot
  Micro SD slot
  3,5mm Audio jack (Microphone supported)
Material Aluminium + ABS
Cable Length 40 cm
System requirements USB port C
  Windows 7/8/10
  Mac OS
  iPad OS
  Linux

Download

Manual Download
Images Download
