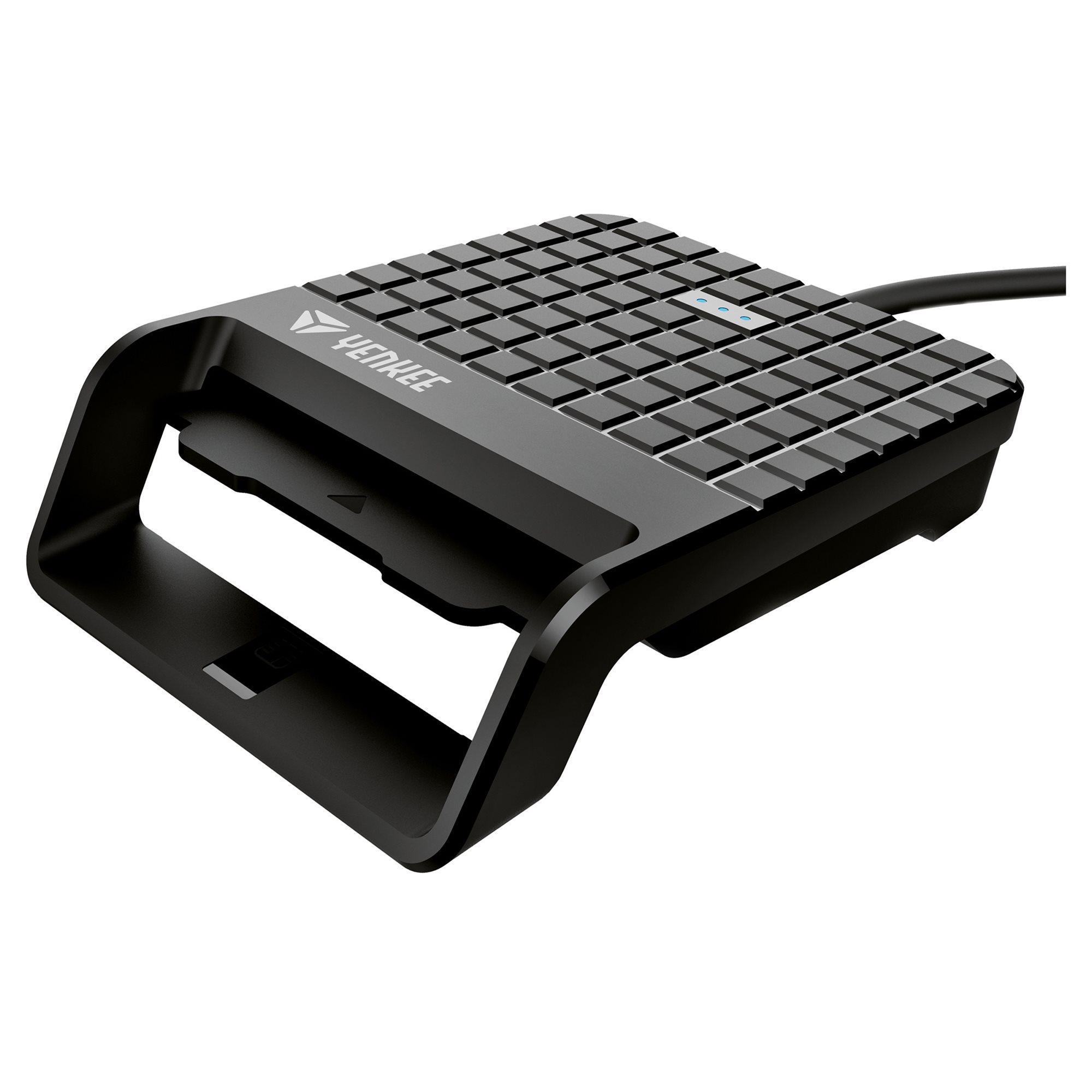

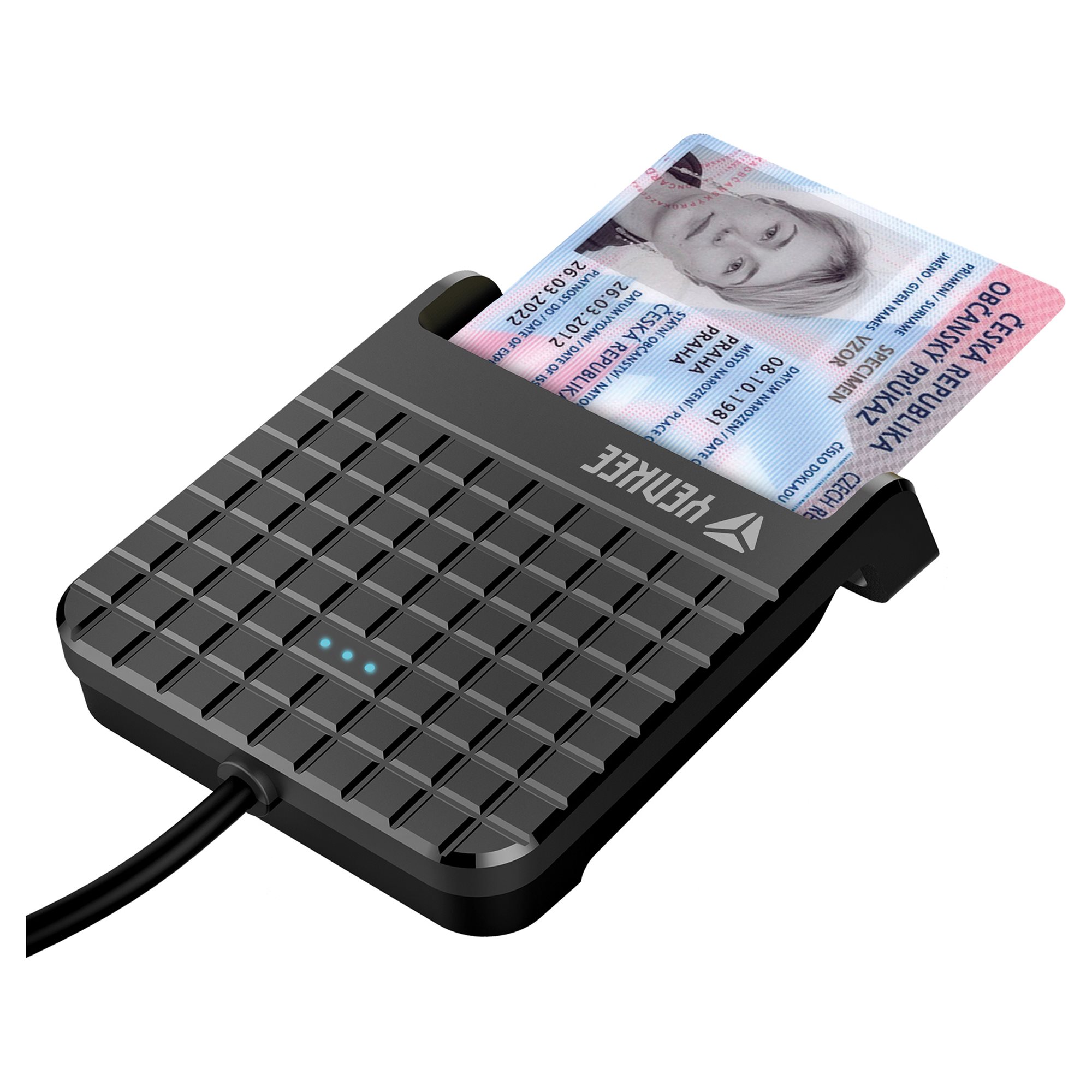

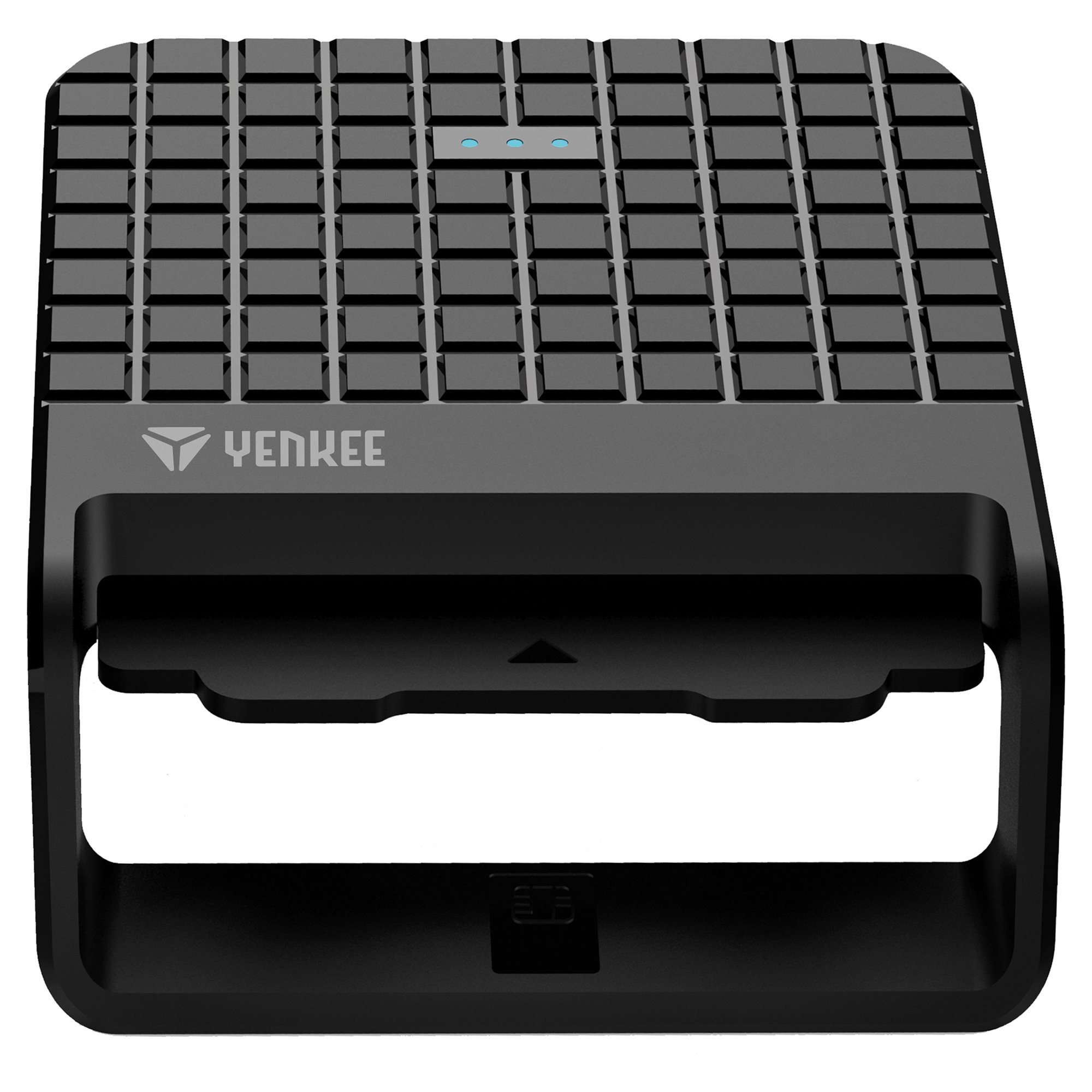

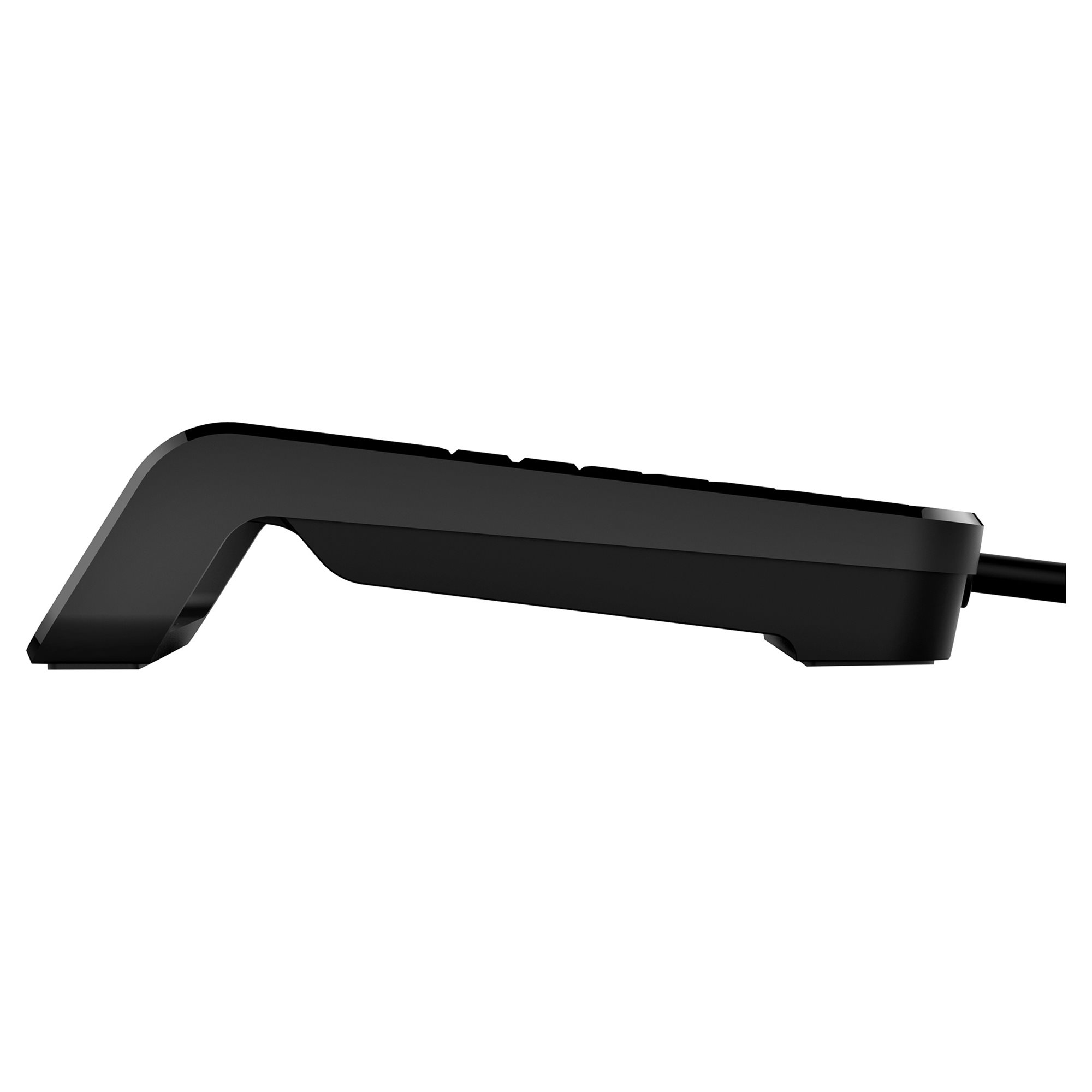

YCR 101

Smart card reader

  1. Plug & Play
  2. Compact size
  3. Home & Office

Easily write and read files

I am an innovative and compact smart card reader. Thanks to my inconspicuous appearance, I blend in with the environment both in your home and in the office. Travelling is not a problem due to my durable and stable body. I meet all standards and specifications for working with smart cards.

100% compatibility with Plug & Play technology

Plug & Play makes it easy to connect and detect hardware almost instantaneously. No additional drivers need to be installed in the system as well. I comply with ISO 7816 and PC/SC requirements, so I can recognize any smart card with 5 V, 3 V, and 1.8 V that meets these parameters.

I fit into any environment

My unique design and small size is what makes me the ideal tool for personal and professional use. I am a safe solution for secure communication between smart cards and systems (e-Government, e-Banking, e-Business, e-Commerce, etc.).
YCR 101

Specification:

Host Interface USB 2.0 CCID
Transmission speed 12 Mbps
Power Supply USB bus powered
Power to Smart Card 60 mA
Smart Card Interface Speed 420 Kbps
Supported card types 5V, 3V and 1.8V Smart Cards, ISO 7816 Class A, AB & C
Cable length 1,5 m
Dimensions 81 x 57 x 13 mm
Weight 103 g
System requirements USB 2.0
  Windows 7/8/10, Linux, Mac OS
