YAC 470

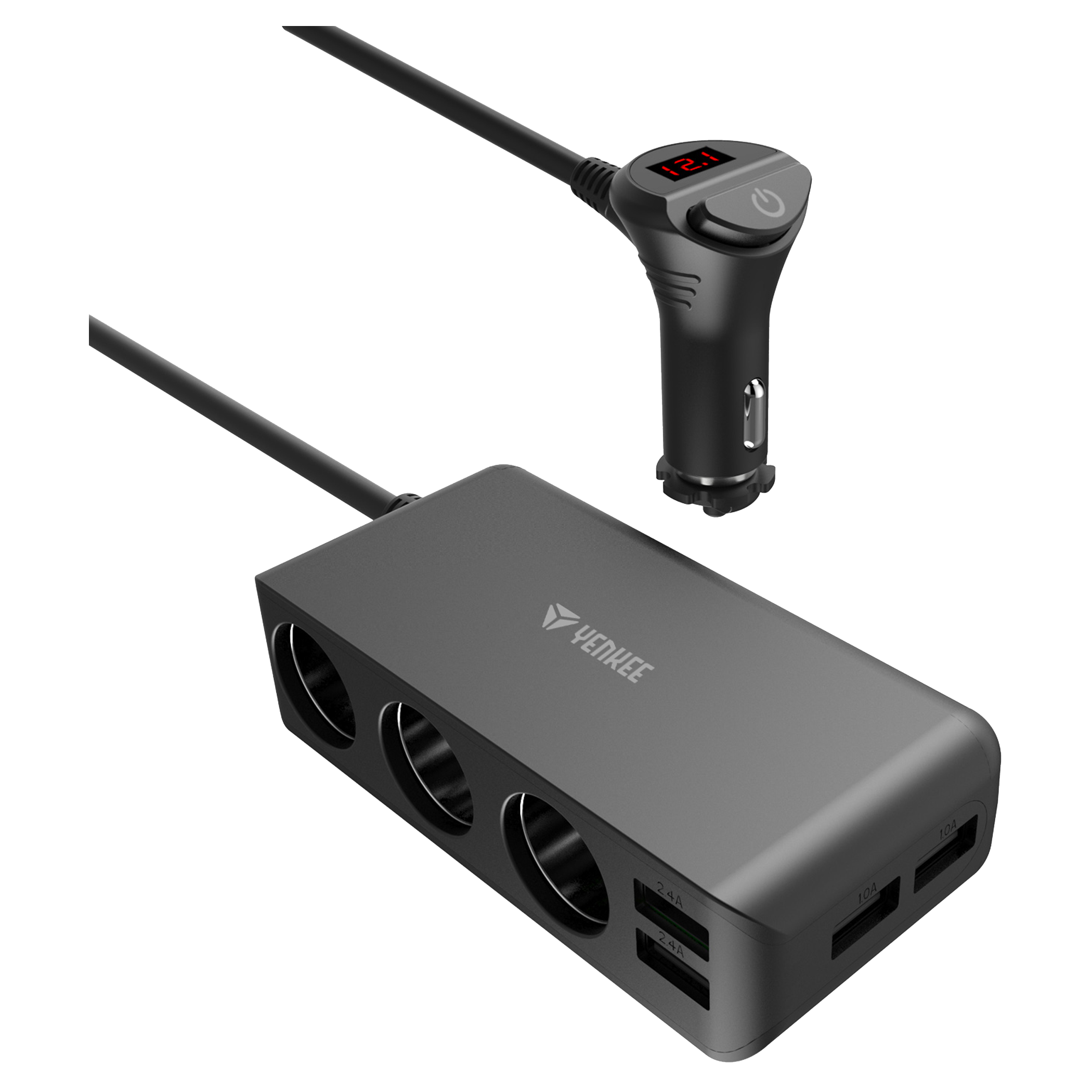

Charging car station

  1. LED display
  2. QC and Power Delivery support
  3. Charging car refrigerators and other devices
Powerful charging station can charge up to seven devices simultaneously. It has three USB-A ports, one USB-C port and three 12 V outputs.

The stations can handle fast charging protocols such as Quick Charge 3.0 (18 W) and Power Delivery (18 W).

12 V output port achieves maximum output power up to 120 W. 24 V output port achieves maximum output power of 200 W.

The charging station can be used in both cars (12 V),
and trucks (24 V).

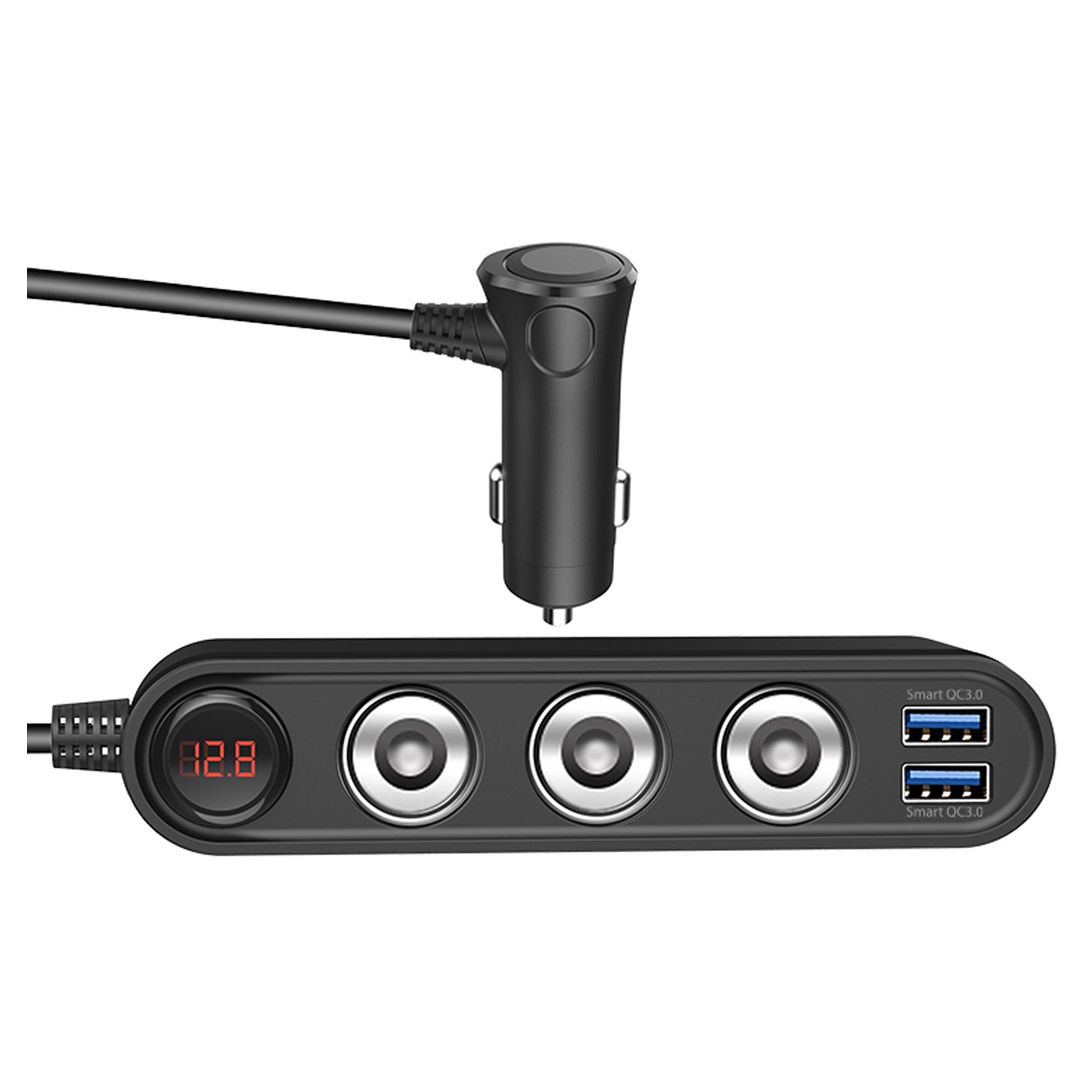

Display showing current voltage and ON/OFF button
controlling USB and 12 V output connectors.

The charging station has multiple protections such as protection against short circuit, overload, overheating and overcharging. The station is also equipped with an 10 A disposable fuse.

YAC 470
Input connector: 12 V / 24 V

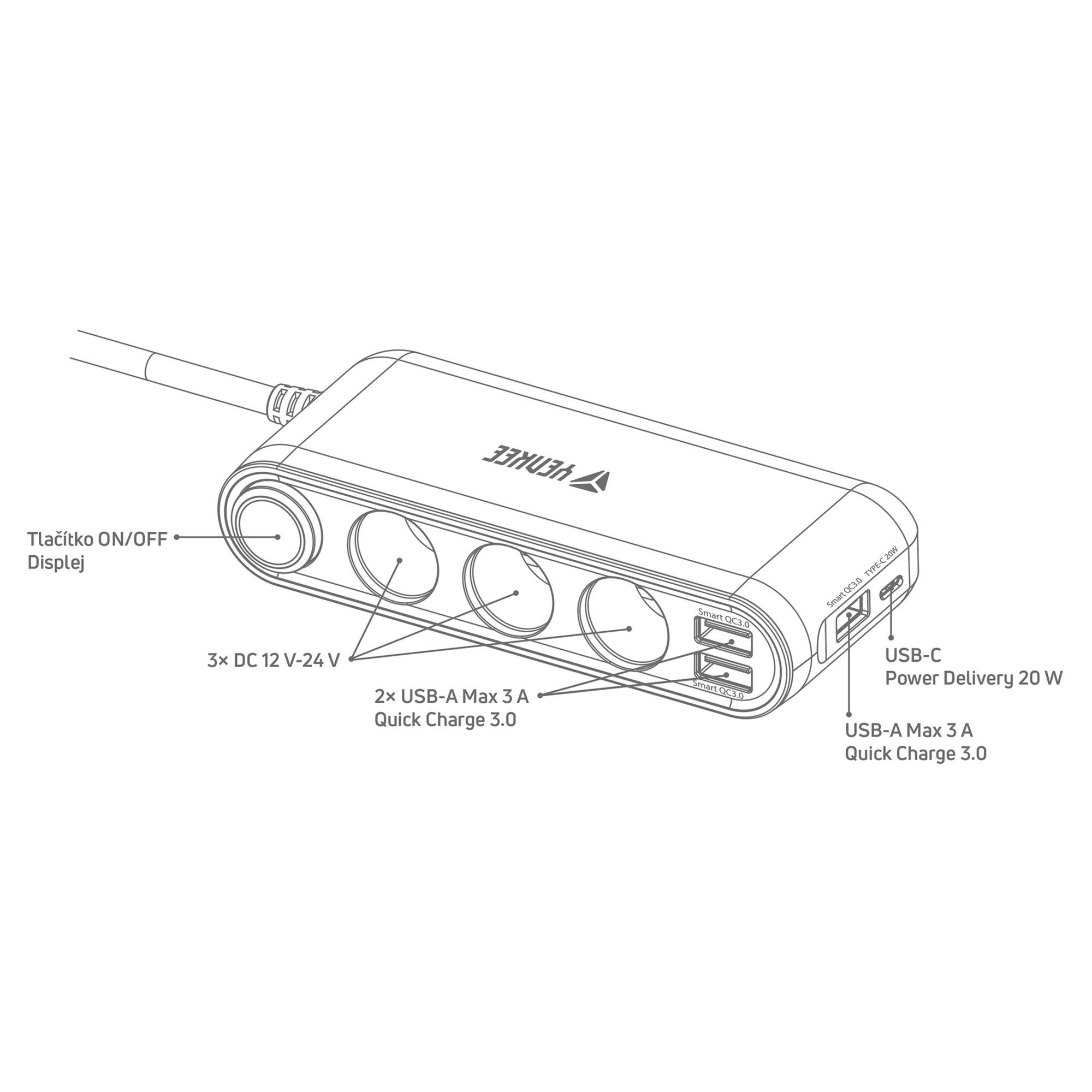

Output connectors:
  3x USB-A QC output
  1x USB-C PD output
  3x 12 V output
Power output:
  1. USB-A QC 3.0 -5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A (18 W max)
  2. USB-A QC 3,0 -5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A (18W max)
  3. USB-A QC 3,0 -5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A (18W max)
  USB-C PD 20 W -5 V / 3 A , 9 V / 2,22 A, 12 V / 1,67 A (18W max)
Max. USB 1 + USB 2 current: 3.1 A (simultaneously)
Max. USB 3 + USB C current: 3.1 A (simultaneously)
DC 12 V (120 W max.) / DC 24 V (200 W max.)
Cable length: 70 cm
